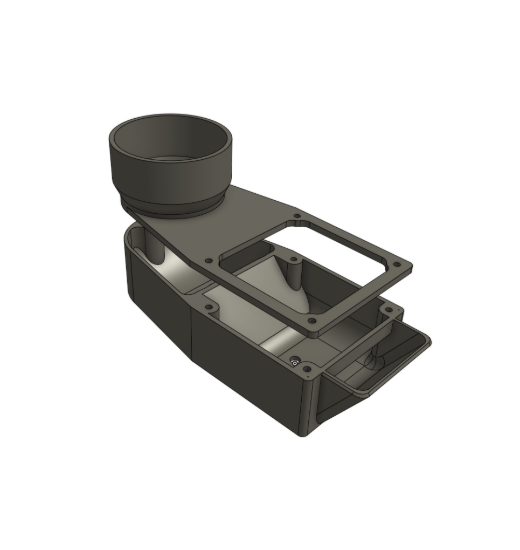

Smoke Extractor Shoe & Air Deflector for CNC/Laser Spindle (2.5" & 4.0" Hose) - Digital Download
Give your Opt Lasers PLH3D-XT8 45W a cleaner, smarter extraction setup with this replacement Smoke Extractor Shoe & Air Deflector. Designed to improve smoke removal by redirecting laser coolant airflow for better extraction efficiency. Includes digital STL files for both 2.5" and 4.0" hose setups. Just print, install, and let your extractor finally do its job.
⚠️ Important: This design is intended for use with a proper laser fume/smoke extractor system only. Do NOT use with standard woodworking dust collectors, as laser fumes and sparks can create a serious fire hazard.
Tired of smoke going everywhere except into the extractor? This replacement Smoke Extractor Shoe & Air Deflector for the Opt Lasers PLH3D-XT8 45W is here to clean things up.
Designed specifically for the XT8 45W, this upgraded shoe helps guide smoke where it belongs while also redirecting laser coolant airflow so your extractor can work smarter — not harder. Less swirling smoke, better visibility, and a cleaner cutting area.
This design replaces the original aluminum boot with a more extraction-friendly setup that’s compact, efficient, and looks right at home on your machine.
This is a digital download only — no waiting, no shipping, just print and install.
Included are versions for both 2.5" and 4.0" hose setups, so you can match your existing extraction system.
What's Included
- STL files for 2.5" hose setup
- STL files for 4.0" hose setup
Hardware Needed (Not Included)
- 4x M3x20mm socket head screws
- 1x M3x10mm self-tapping screw
Before Installation
You’ll need to remove the original aluminum boot from the PLH3D-XT8 45W before installing this replacement.
Related Products
Need hose adapters? Matching adapters for both 2.5" and 4.0" hose systems are available separately.
Important Safety Notice
This design is intended for use with a proper laser fume/smoke extractor system only. Do NOT use standard woodworking dust collectors, as laser fumes and sparks may create a serious fire hazard.
Important
- Digital download only
- No physical product included
- 3D printer, hardware, hoses, laser, and adapters shown in photos are not included
- Designed for makers who enjoy upgrading and customizing their machines
Because lasers are cool… but breathing smoke isn’t.
